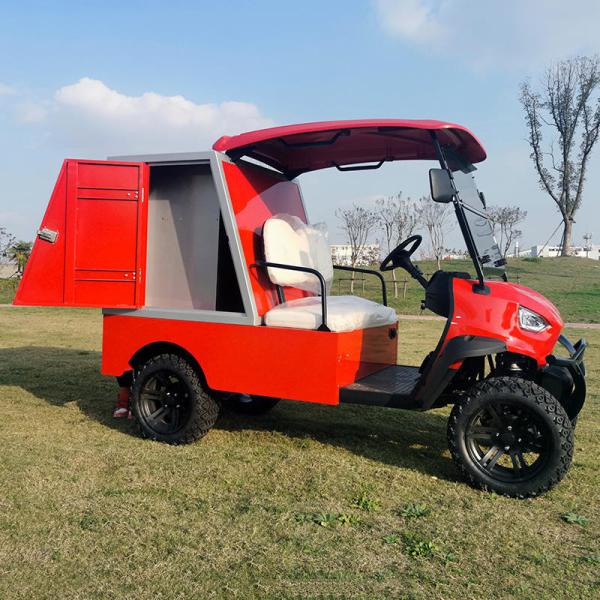

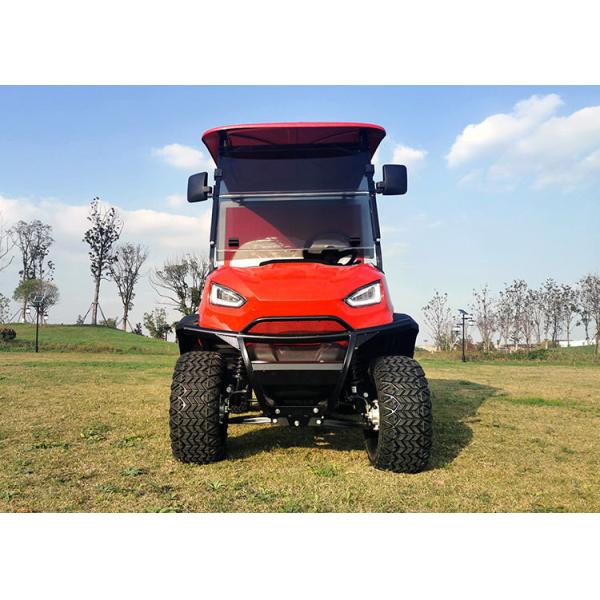

SPECIFICATIONS OF Small electric lithium 72v golf car fire fighter truck for emergency use LS2040AF |
| | System | 72V/5KW AC Syetem |
| Battery | 72V115AH Lithium Battery |
| Motor | 5KW AC Motor |
| Controller | AC controller |
| | Passenger capacity | 2 |
| Range (loaded) based on flat road at a speed of 20km/h | >100km |
| Max. speed | 32km/h (adjustable) |
| Minimum turning radius | 4.5m |
| Max. climbing ability (loaded) | 25% |
| Max. movement after brake at speed of 20km/h | ≤4m |

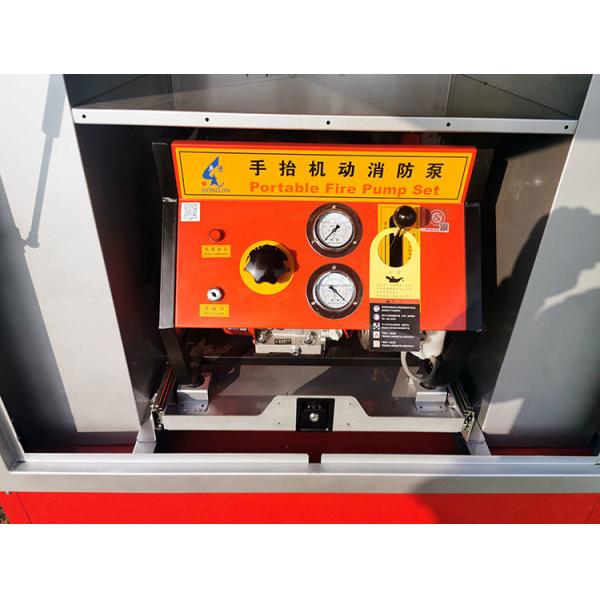

| Rear water tank capacity | 250L |
| Max. loading weight | 480kgs |
| Net weight | 580kgs |
| | Overall dimensions | 3600x1340x1990mm |
| Min. ground clearance | 170mm |
| Wheelbase | 2440mm |
| Front wheel tread | 960mm |
| Rear wheel tread | 1000mm |
| Body and Frame |
| Frame | Welded steel framework to be treated in galvanization and powder |
| Body | PP plastic front body + PP plastic rear body |
| Roof | PP injection (Black) or vacuum plastic |
| Windshield | Organic glass Windshield, hinged |
| Roof supports | Carbon Steel, powder coated |
| Backrest and Seat | Reborn Sponge, artificial leather + plastic armrest |
| Floor | Galvanized Steel plate and anti-slip rubber floor mat |
| Dashboard | Plastic in black, with 4 cup holders, 2 glove storage box, forward/reverse switch, battery capacity indicator, ignition key |
| Side trim | Plastic |
| Sider mirror | 2pcs, foldable |
| Electric system |
| Lighting system and horn | All LED lights, 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with 20A voltage reducer (converting from 72V to 12V), electric horn. |
| Backup Buzzer | 12V |
| Digital meter | LCD Screen, with speedometer, odometer, battery power meter, and various indicators |
| Charger | Smart charger, input 110V-240V~50Hz-60Hz, output 72V, 18A |
| Steering and Suspension |
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | 4-wheel hydraulic brake front disc rear drum + foot park brake |
| Accelerator | Stepless speed change |
| Suspension system | Front macpherson independent and rear plate spring + vibration absorber |
| Driving mode | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Integrated, Gear ratio 12.49:1 |
| Wheel & Tyre | 12x7 aluminum wheel + 23" tire(23*10.5-12) |
